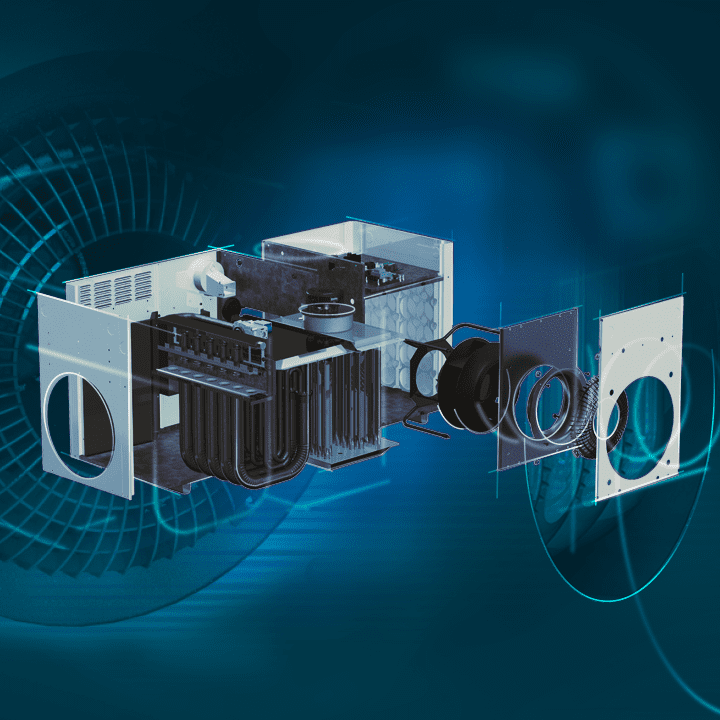

Braemar ducted gas heater parts expanded

Ducted Gas Heating

Harness the ultimate in warmth and cosy comfort

Benefits of Braemar Ducted Gas Heating

Natural ducted gas heating, the ultimate in safety, reliability and energy efficiency.

  • Cheaper to run and reaches desired temperatures much faster when compared to reverse cycle heating.
  • Flexible zoning options provide complete control over your individual comfort needs by heating only parts of the house in use which can save you up to an extra 60% on running costs8.
  • Flexible installation for all types of homes and roof spaces.
  • Ducted gas heating won’t dry your skin and eyes. It’s a different kind of cosy warmth.
  • Better for the environment with low CO² emissions15.

Renewable, clean, green hydrogen

The future of home heating

Hydrogen H2

Australians love natural gas. Almost half of all household energy in Australia is provided by gas6. It’s a reliable, cost effective energy for the appliances we use for cooking, heating and hot water. The great news is there are changes afoot with plans to rollout green hydrogen into the supply chain to households.

When used as a fuel, hydrogen’s only by-product is water. This flexible, safe and storable fuel can be used to blend with or replace natural gas to heat homes and for cooking. It produces no carbon emissions when used as a fuel. Hydrogen is also hugely versatile and has many other uses in industry and transport, all of which will bring us closer to a net zero emissions future, right here in Australia.

What’s exciting is that hydrogen blended with natural gas is the first step to this zero emissions future in Australia and it is currently being trialed in selected communities across Australia by leading gas suppliers. Importantly it will be rolled out into various gas networks within the next 5 to 10 years.

At Seeley International, we have been working with leading industry authorities to ensure our gas heating products are “hydrogen-ready”, to perform at their best using hydrogen blends to provide the same cosy warmth and whole of home comfort that millions of Australians expect and have been experiencing every winter with Braemar, for generations.

So, when clean and green, renewable hydrogen gas blend is available in your neighbourhood in the near future, you can be assured that your Braemar gas heating system will perform at its best and is compliant with all Australian Safety Standards and regulations3.

Built by Australians, for the Australian climate

Seeley International is proudly a 100% Australian owned company, designing and manufacturing world-leading air conditioning products for Australia and the world. As Australia’s largest air conditioning manufacturer, we are a global leader in developing ingenious, energy-efficient cooling and heating products.

Being made in Australia, you can rely on build quality, availability of parts and after sales service. We’re extremely passionate, and dedicated to strengthening the Australian economy, supporting local employment and building on the skills of our workforce.

Braemar Ducted Gas Heating Technology

Features and Benefits of Braemar Ducted Gas Heating Technology

Flame Icon

Maximum efficiency with our InShot BurnerTM

Thorough air/gas mixing for clean, efficient combustion.

Pilot light icon

No pilot light ensures the heater works everytime

  • Electronic ignition guarantees reliable ignition
  • No standing pilot saves wasted gas when heater is not being used.
Speaker off icon

Whisper quiet operation with variable speed combustion fan

Combustion fan effectively expels all combustion gases outside.

Performance gauge icon

Use less energy with heater output modulation

Our Modulating Gas Control can burn from 100% gas rate all the way down to 6% gas rate on our 7 star equivalent2 heater range when zoned.7

Check mark tick icon round

Australian Gas Association (AGA) tested and certifiedTM

  • Multi level safety controls standard on all of our ducted gas heaters.
  • Integrated control system monitors all heater, flame sensor and safety functions.
Spanners tool icon

Flexible installation for all types of homes

  • Unit can be safely installed inside the roof, under the floor or outside the house.
  • Ducts can be installed in the ceiling or under the floor.
  • Two-piece configuration means easy installation.
Braemar 6 stars icon

Maximum energy efficiency with Ecostar® Tri-ActionTM heat exchanger

  • Standard on TQM6, TQS6 and TQS7 series ducted gas heaters.
  • Maximum heat transfer in minimum space.
  • Corrosion resistant.
Inverter icon

Use less electricity with our Inverter motor

  • Australia’s first and only inverter motor for ducted gas heating, available on the 7 star equivalent2 range only.
  • Designed to distribute warm air via ducts quickly, effectively and discreetly.
  • Save on running costs.

Replacing your old heating system?

Throughout the cooler months, it is vital for the health of you and your loved ones to have a consistent warm, comfortable environment.

Throughout the cooler months, it is vital for the health of you and your loved ones to have a consistent warm, comfortable environment.

Why you should choose ducted gas heating

Throughout the cooler months, it is vital for the health of you and your loved ones to have a consistent warm, comfortable environment. Ducted gas heating offers a reliable, comfortable, instant and constant heat.

If you are undertaking a renovation, or have an older inefficient system, there are many compelling reasons to stay with, or change to, ducted gas heating. Ducted gas heating has advanced considerably in the last 20 years, providing significant efficiency savings and performance improvements. Replacing an old system with a new Braemar ducted gas heating solution can deliver you significant savings on your energy bills.



Replace your old heater and SAVE!

Savings per year compared to an older 1.5 star ducted gas heater4

Star ratings upgrade cost savings chart comparison

Note: Zoning an upgraded heater can bring further energy cost savings. Ask your Braemar Dealer for further details.

What our customers are saying:



Julia Sale
Julia Sale
03/10/2021
Tayfun Tuna
Tayfun Tuna
30/09/2021
It’s been a much needed upgrade for me. It’s realisable and works nicely with my smart home. It’s so easy to use the smart features too
Dennis
Dennis
30/09/2021
Heater is very good. Had an initial problem which was rectified promptly. Can’t complain when an issue is dealt with quickly and successfully. After that we’ve had twelve months plus hassle free. Relatively economical considering we’ve run it a LOT throughout winter.
Rogue Blade
Rogue Blade
30/09/2021
The work was well done and the system quickly installed. Everything was explained and we have had no issues with the system bought. A job well done with a decent price.
Darren Brenton
Darren Brenton
28/09/2021
Purchased TQM516 3rd qtr 2020. The unit is quiet and efficient. Gas bills have dropped noticeably from my previous unit. Likes: - quiet - efficient - low cost of running (compared to previous unit) - program time options - override in particular is great for a boost and drops back to program at designated time Dislikes: - Difference between fan speeds too great. Speeds 1-7 far too low to be usable, 8 and 9 fall either side of the 'sweet spot' but can be balanced between day and night to and 10 raises temperature too rapidly to be comfortable (also too noisy). - Magiqtouch controller very sensitive - physical buttons for power and commonly used items would be preferable. Suggestions: - Improve fan speed control for finer change - Automate thermostat/fan speed such that higher temperature differential increases fan speed and lower decreases within a band.
Lindy D
Lindy D
28/09/2021
Can't work out how to set timers to go off and on at a set time. Doesn't seem to work.
Alan Clark
Alan Clark
28/09/2021
Great system more efficient awesome service.
Kathy Deselms
Kathy Deselms
23/09/2021
Great service would recommend to family and friends
Geoff Boldiston
Geoff Boldiston
23/09/2021
Jenny Mundy
Jenny Mundy
27/08/2021
Fantastic and professional service.

Braemar Ducted Gas Heating Product Range

The world’s most energy efficient conventional ducted gas heaters

Boasting Australia’s first and only inverter motor for ducted gas heating, Braemar’s 7 star equivalent ducted gas heaters have the lowest running costs – by far!

Braemar Ecostar 7-Star Ducted Gas Heater

Ecostar® 7.0 star equivalent2

  • Engineered for ultimate efficiency
  • Suitable for internal installations
  • Zoned-heating capability
  • Not available with Add-On Cooling


Explore Ducted Gas Heating Range

Download Ducted Gas Heating Brochure













Ducted gas heating – star ratings

Star Ratings Explained

Braemar 6 stars icon

Energy efficiency made easy

In Australia, there is an Energy Rating Labelling scheme to help customers choose energy efficient appliances.

1-Star icon

More stars, more savings

The higher the number of stars on the rating label, the more efficient the appliance, meaning greater annual savings on your running costs.

Dollar sign icon

One star = 10% saving4

On average an increase of one star means an average usage saving of approximately 10%.

Highest stars rating icon

Highest star rating

Braemar has developed heaters that measure at a higher efficiency than the maximum 6 star rating stated by the Australian Standard.

7-Star icon

7 Star equivalent explained

Using the Australian Standard system, the Australian Gas Association (AGA) report calculates that Braemar has a 7 star equivalent ducted gas heater.

Check mark tick icon round

Independently tested

All Braemar ducted gas heaters have been independently tested in an AGA NATA accredited testing laboratory.

Upgrade your selected star rating and see your savings grow every year

Compared to a 3 star ducted gas heater4

New home build or installing a new heating system

Braemar has the highest efficiency star ratings in Australia for ducted gas heating1
Braemar ducted gas heating star ratings cost savings graphBraemar ducted gas heating star ratings cost savings graph

Ducted gas heating VS reverse cycle heating

Ducted gas heating provides many advantages over reverse cycle

These include:

  • Ducted gas heating offers an instant, cosy heat with less drying of the air. Reverse cycle air conditioning tends to
    produce dry air that can irritate the eyes, nose and skin.
  • Running cost savings.
  • Warms your whole home quickly by producing much warmer air temperatures from your outlets than reverse cycle.
  • Most ducted gas heaters are quieter as they are mounted in the roof space, out of sight and without troublesome
    noise for you or your neighbours.
  • Ducted gas heating operates independently of how cold it gets outside and therefore provides constant, cosy
    performance at all times.
  • Whole of home heating with flexible zoning options.
Dollar sign icon

Cost effective

Savings of $368 per year when compared to reverse cycle4.

Performance gauge icon

Better performance

Reverse cycle works less efficiently when outside temperature drops. Ducted gas efficiency remains steady.

Flame Icon

Instant warmth

Ducted gas reaches desired temperature much faster than reverse cycle.

Feather icon

Comfortable air

Ducted gas heating won’t dry your skin and eyes. It’s a different kind of cosy warmth.

Zone your home with three zoning options10

Save up to an extra 60% on running costs with zone control

Zoning your home’s new ducted gas heating system can deliver up to 60% more savings8 on top of your star rating choice when you select the gas heater unit. Heating only selected rooms or zones in your home when you want to, means you aren’t paying for heating certain areas of your home unnecessarily.

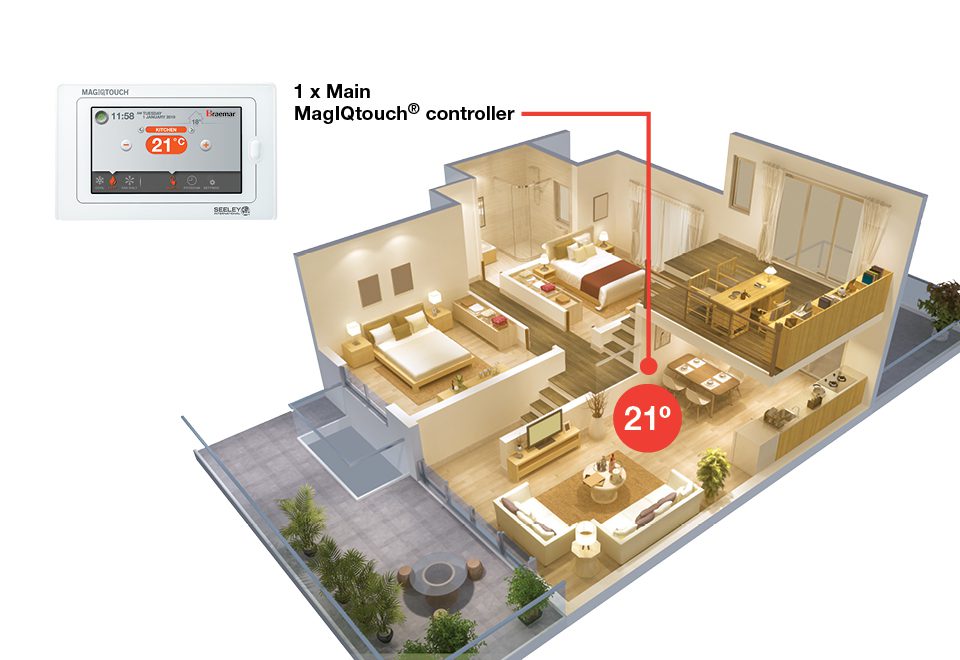

Braemar ducted gas heating - Standard Zoning

Option 1 – Standard Zoning

Controlled from:
1 x MagIQtouch® controller in common zone
• Set one temperature for all zones
• Ability to turn zones on and off, based on minimum outlet requirement

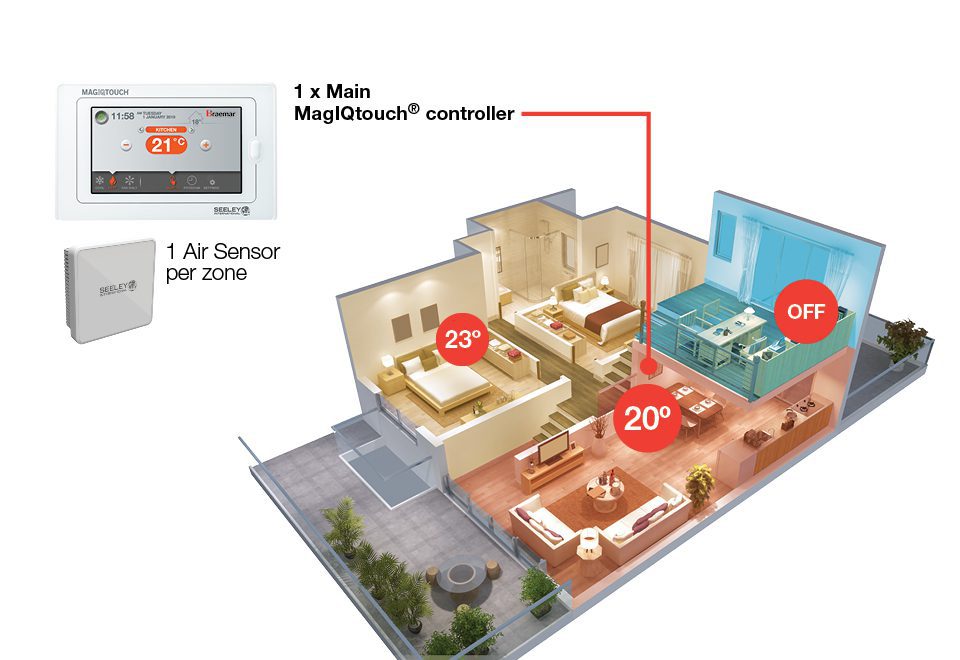

Braemar ducted gas heating - Central Control Zoning

Option 2 – Central Control Zoning

Controlled from:
1 x MagIQtouch® controller in common zone
• Set different temperatures for each zone
• Additional discreet MagIQtouch® Air Sensors located in each zone
• Ability to turn zones on and off, based on minimum outlet requirement
• Option for up to 10 different zones

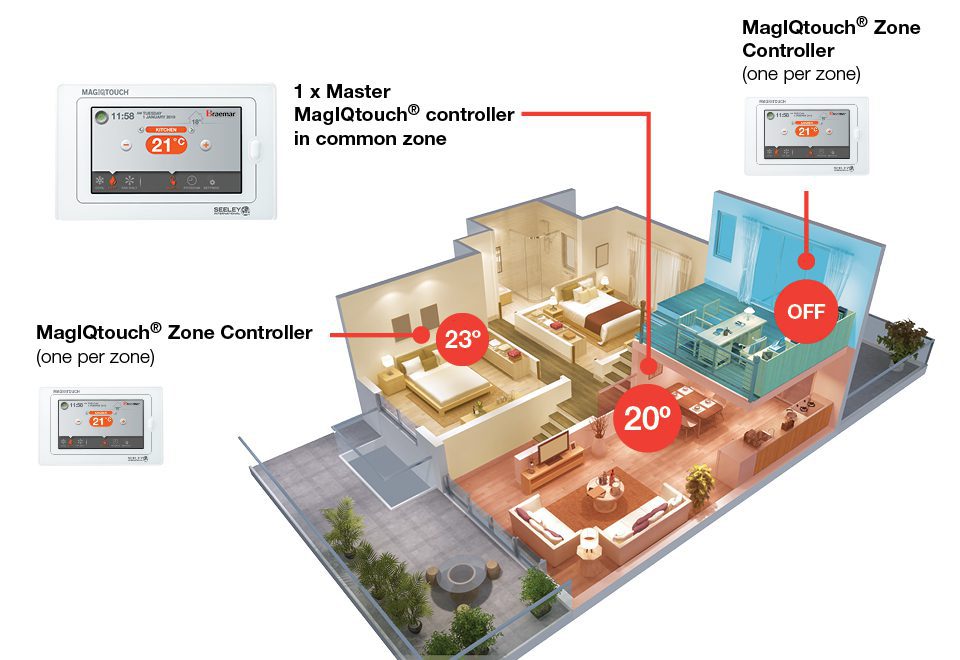

Braemar ducted gas heating - Complete Comfort Zoning

Option 3 – Complete Comfort Zoning

Controlled from:
Up to 10 x MagIQtouch® controllers (1 x per zone)
• Set different temperatures for each zone from a dedicated MagIQtouch® controller in each zone based on minimum outlet requirement
• MagIQtouch® zone controllers include built-in temperature sensors
• Ability to switch on/off whole system from a central master MagIQtouch® controller
• Set independent programs for zones from each MagIQtouch® zone controller
• Option for up to 10 different zones

Harness the simplicity of MAGIQTOUCH controller

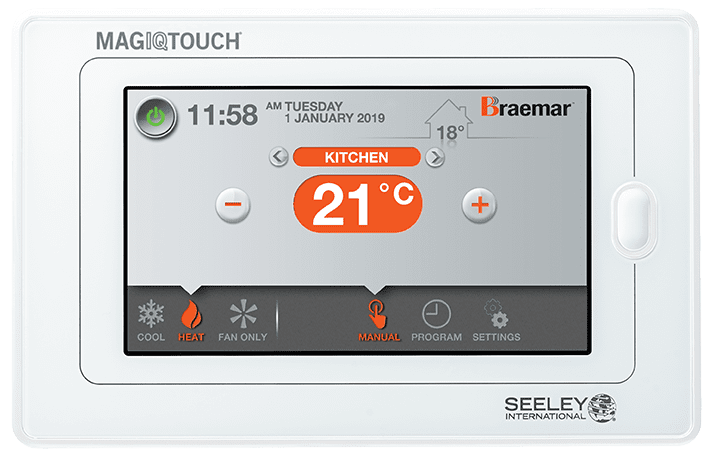

Braemar MagIQtouch controller

Touch Screen Technology

Smart, sophisticated and incredibly intuitive, your MagIQtouch® controller is an upgrade from the Braemar manual controller and makes operating your Braemar ducted gas heating system so simple. Control the temperature, fan speed and many more features on a user-friendly touch screen.


Learn More About MagIQtouch Controller





Pointing hand icon

Touchscreen functionality

All functions & operations are only a touch away with the easily navigated interface.

Cooling snowflake icon

Switch to Cooling

Quickly switch to cooling. Add-On Cooling options available to complement your ducted gas heating system.

House icon

Zone your home

Switch between zones in your home and control the heating settings in each zone. Save running costs by switching zones off8.

Clock icon

Program Mode

Programmable 7 day, 4 time period program, customisable to suit your lifestyle (including a temporary over-ride function).

Control settings icon

Useful Settings

Access features such as child lock, quiet mode1 and servicing information.

Triangle design icon

Stylish Design

Sleek screen styling to fit in to any home décor.

Harness the power of Wi-Fi and Wireless controllers

Controller Upgrade Options

If you choose a MagIQtouch® controller you receive a touchscreen that is hardwired into your home, fixed to your wall, where it best suits your needs. This model of MagIQtouch® controller can be upgraded to a Wi-Fi enabled touchscreen.

Controller Upgrade Option 1

Wi-Fi Enabled Touchscreen:

  • Take complete control of your comfort at home, at all times.
  • Upgrade to a Wi-Fi module (sold separately) to work with your hard-wired MagIQtouch® Controller11 enabling you to control your heating directly from your personal device through our smart app.
  • The Smart app11 is available on Android and IOS devices.
  • Integrate into voice activated smart home controls like Google Home13 and Amazon Alexa12

mobile phone with google assistant and amazon alexa

Controller Upgrade Option 2

Wireless Touchscreen14:

  • Battery operated Wireless Controller using Radio Frequency technology.
  • Ideal for renovations, or where access for cabling is limited.
  • Easier to install, the RF option also provides up to 2 primary controllers.
  • Can control the entire system from 2 locations, rather than 1; an ideal solution for larger, or two storey homes.

Braemar MagIQtouch controller

How does ducted gas heating work?

A ducted gas heating system includes a number of essential components:

  • The heater itself;
  • Insulated ducts that carry air from and to the heater;
  • Vents (also known as grilles or registers) that spread air into individual rooms and return air to the heater; and
  • A thermostat.

Gas heaters work by passing cold air over a heat exchanger, which is warmed by gas combustion. The warmed air is then pushed through ducts into the home via a series of vents in the ceiling or floor. A thermostat is installed in the main living area. This senses the air temperature inside the home and sends a signal to the heater to cycle on, or off, to maintain the desired temperature. The products of combustion are all discharged safely outside the home, via a flue.

1. 3 to 6 star, and 7 star equivalent products for ducted gas heating.
2. Star rating equivalent. Based on Australian Gas Association’s results calculated in accordance with the testing methodology in AS/NZS5263.1.6:2020
3. Seeley International gas appliances at point of manufacture date, will comply with all relevant Australian Regulatory Standards, for use of current industry approved hydrogen/natural gas blends at that time.
4. Data is based on: Gas price = 2.19 c/MJ • House Size – 240 m² x 2.4m ceiling height • Operation hours per year • 600 hrs (100 days at 6 hrs per day) – based on AS/NZS5263.1.6:2020 House Heat load – 0.2 MJ/h/m³ – based on AS/NZS5263.1.6:2020 • Annual Energy Consumption (AEC) for different star rated heaters based on AS/NZS5263.1.6:2020 • 3.0, 4.0, 5.0, 6.0, 6.8 and 7 star equivalent rated ducted gas heating systems. Note: These figures may vary for individual situations due tovariation in factors such as gas price, house size and insulation, heater usage patterns, the area heated, how long you run the heating for, your thermostat settings, your local climate etc.
6. Source: https://renewable-gas.com.au.
7. Zoning is an optional extra cost. TQ3 and TQD3 models: zoning is not available.
8. Actual savings achieved will depend on the number of zones and controls installed, actual zone usage pattern, temperature settings, outside temperature, house size and room layout, house insulation, number of outlets, zone system design. Zoning savings are based on: • A range of assumed zone configurations, usage profiles and zone set-temperatures, with energy consumption reduced due to not heating the whole house all of the time. • Individual zone temperature control (a single MagIQtouch® controller in combination with air temperature sensors, or multiple MagIQtouch® controllers).
9. TQ3 and TQD3 models: night quiet mode and zoning is not available, and fan speed is not user-adjustable.
10. Zoning is an optional extra. Heating in each zone is subject to having air sensors or additional MagIQtouch controllers.
11. Requires MagIQtouch® wall control, MagIQtouch® Wi-Fi smart kit and MagIQtouch® account to operate. Additional costs may apply.
12. Requires Wi-Fi, Amazon Account and a compatible device. Additional costs may apply.
13. Requires Wi-Fi, Google Account and a compatible device. Google and Google Home are trademarks of Google LLC. Additional costs may apply.
14. MagIQtouch Wi-Fi Module is not compatible with MagIQtouch® Wireless Controller. Existing installations including a MagIQtouch controller may need to be upgraded if purchasing the Wi-Fi module. Additional costs may apply.
15. Low emissions information taken from: https://www.yourhome.gov.au/energy/heating-and-cooling.

Braemar ducted gas heater parts view

VIEW OUR COMPLETE PRODUCT RANGE

We have a wide range of Ducted Gas Heaters to suit every situation and budget.

EXPLORE DUCTED GAS RANGE Download Ducted Gas Heating Brochure



Help Me Choose Find A Dealer
Coronavirus (COVID-19) Business updateLearn More
+ +
