Climate Wizard CW3 Micro-Core Dual System

CW3 Dual System

Up to 60% reduction in energy costs compared to reverse cycle.*

The future of heating and cooling. Climate Wizard CW3.

What is CW3?

“CW3 is the biggest breakthrough in air conditioning since reverse cycle was invented in 1902. In principle, little has changed in 100 years… until now. The revolutionary Climate Wizard has been sold around the world for large commercial applications for more than a decade, and now, Climate Wizard CW3 residential is here, creating a complete paradigm shift for the industry, as well as for home owners.”

– Frank Seeley AM, DUniv Flin, FAICD
Founder and Executive Chairman

The CW3 offers two options; either as a combined heating and cooling system or as a stand-alone hyper-efficient cooling only solution; both for home owners wanting  next level energy-efficiency and superbly functional design. Using an indirect evaporative counter-flow heat exchange core to provide hyper-efficient cooling of outside air, the CW3 offers greatly reduced energy consumption compared to equivalent refrigerated systems and delivers 100% fresh air. When it becomes paired with a gas heating unit located in the roof space, the CW3 Dual System is also able to deliver warm air through the same ducts and goes into the home via the same small vents in the ceiling – making the system much less visible and more cost effective to run.

The world’s most advanced dual heating and cooling system.

Up to 60% reduction in energy costs compared to reverse cycle.*

100% FRESH, COOL AIR FOR YOUR
WELL-BEING.

Get a Quote



DOWNLOAD BROCHURE
CW3 delivers outstanding energy-efficiency.

The CW3 Dual System delivers up to 60% reduction in energy costs compared to reverse cycle for total heating and cooling.*

As cooling only, CW3 delivers up to 80% reduction in energy costs compared to reverse cycle.*

What’s even better is that CW3 cooling delivers 100% fresh air while achieving hyper-efficient cooling temperatures that could previously only be achieved
by reverse cycle systems. And even more staggering is that CW3’s cooling performance actually gets better as the outside temperature heats up. That’s in direct contrast to refrigerated air conditioners, where cooling capacity can be significantly reduced when ambient temperature starts to soar.

FULLY INTEGRATED SYSTEM.

Whole of home. One set of ducts. One set of ceiling vents. One controller. 365 days of comfort.

CW3 effortlessly cools and heats your home.



Cooling mode

The CW3 uses Micro-Core™ technology to deliver hyper-efficient cooling at incredibly low temperatures, comparable to reverse cycle systems. You can keep the windows and doors closed for security, or open for alfresco living!

More about Cooling Mode

  • The outdoor unit is positioned on the roof, delivering cool air through ducts into the home via small vents in the ceiling.
  • Warm air is expelled out of the home through a return air vent into the ceiling, and is released to atmosphere through the roof space, or, alternatively, windows and doors can be opened to release the warm air – it’s your choice.
  • The cooling system replaces the air inside your home with 100% fresh cool air 10 times an hour.

Heating mode

The CW3 Dual System heats your home quickly and efficiently with gas, providing instant cosy warmth.

More about the Heating mode

  • The gas heating indoor unit is positioned within the roof space.
  • Warm air is delivered through the same ducts, and into the home via the same small vents in the ceiling making the system less visible and more cost effective to install and run.

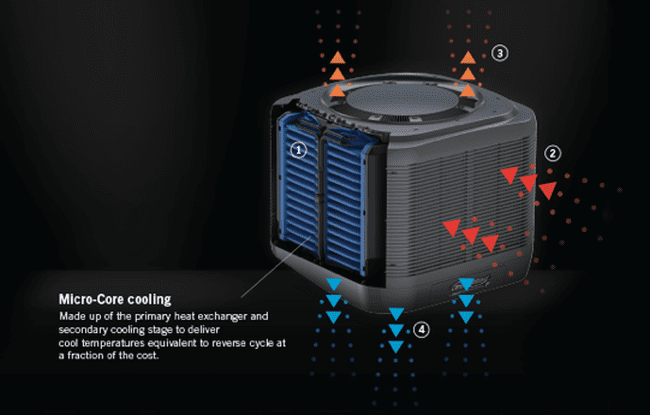

How it Works

The secret to the hyper-efficient cooling in CW3 is the Micro-Core™ technology. This is how it works.

More about How it Works

  1. The Micro-Core air-to-air counter-flow heat exchanger consists of a large number of parallel channels that are alternately wet and dry.
  2. All of the hot air is drawn through the Micro-Core dry channels, where it is progressively cooled by heat transfer to the wet channels.
  3. One third of the cooled air is drawn in a counter-flow direction through the wet channels where it gains both moisture and heat, after which it is exhausted through the top of the air conditioner into the outside atmosphere.
  4. The remaining two thirds of the cooled air is then drawn through the second cooling stage to further reduce its temperature and thereafter it is circulated through the home.

One intuitive controller.

Advanced MagIQtouch® next generation smart controller. Easy to use, intuitive touch screen control.

Wi-Fi smart app and smart home integration.

Control your cooling and heating directly from your pocket or with your voice via smart apps like Amazon Alexa.^

The world's most advanced dual heating and cooling system Unmatched energy cost savings Perfect balance of air moisture Natural temperature control

More about CW3
