VRF for modern workplaces
High performance, energy efficient with world class quality
VRF Air Conditioning
Braemar offers the latest generation in VRF technology with a number of clever features that provide outstanding energy savings, excellent efficiency, high airflow and performance in combination with smart management and reliable operation. Braemar VRF ducted reverse cycle is the ideal commercial air conditioning solution using inverter technology, manufactured by one of the worlds largest reverse cycle companies, providing uninterrupted heating and cooling.
Up to
large capacity
Up to
on one system
Up to
total pipe length
Up to
communication wire
Benefits of commercial VRF
Energy efficient heating and cooling for a wide range of commercial applications
Offering total comfort year round, Braemar’s reverse cycle systems provide heating and cooling for small to large scale commercial applications. Braemar offers a comprehensive range of the latest VRF technology including ducted reverse cycle, mini VRF, mini slim VRF, large capacity heat pump and heat recovery, and 10 indoor unit types. Featuring excellent efficiency, airflow and performance, the 6th generation VRF systems allows up to 100 indoor units on one system with advanced and intelligent control software.
Braemar VRF Benefits
- Comprehensive line-up, featuring the latest in VRF technology
- Seven speed DC inverter technology offering outstanding energy savings
- Low noise control technology
Powerful and intelligent commissioning software - Flexible design includes up to 1,000m total pipe length, high ESP outdoor fan, up to 1,500m total communication wire
- Up to 100 indoor units on one system
- CAN+ communication technology allows for high speed communication
- Manufactured by the world’s largest and most experienced producer of refrigerated systems
- Backed by world class Australian manufacturer Seeley International for local service and support
Commercial VRF Applications
VRF systems provide energy efficient heating and cooling for a wide range of commercial applications.
Braemar offers a comprehensive range, featuring the latest generation in VRF technology for a wide range of commercial heating and cooling applications. VRF is the ideal solution for apartments and residential developments, commercial offices, retail shops and showrooms, hotels and accommodation.
Hotels & Accommodation
Apartments & Residential
Commercial Offices
Retail & showrooms
Combining VRF and Climate Wizard indirect evaporative air conditioning takes control of electrical kW demand, particularly during summer, when cooling loads increase. Using Climate Wizard for pre-cooling of VRF systmes can generate up to 50% energy savings on cooling costs while reducing the plant size and capital cost for new installations. Learn more about indirect evaporative cooling for pre-cooling applications.
The Braemar VRF Range
A comprehensive range, featuring the latest generation in VRF technology
Braemar VRF Range
A comprehensive range, featuring the latest generation in VRF technology including:
- Flexible mini VRF – Comprehensive range of indoor combinations. Mini VRF outdoor units are available in size ranging from 8 kW to 16 kW single phase. The new Mini Slim VRF MCSX outdoor units are available in 22kW and 28kW capacities and can connect up to 17 indoor units of equal or varying capacities. These models also features Black Fin anti-corrosive coating and are DRED enabled.
- Large capacity VRF – MCHX heat pump and MCRX heat recovery with a comprehensive range of indoor combinations. The maximum capacity of a single outdoor unit can reach 45 kW.
- Groups of individual units can also be combined reaching 180 kW capacity.
- Hyper-efficient air conditioning – Combination VRF and Climate Wizard indirect evaporative air conditioning.
- Take control of electrical kW demand, particularly during summer, when cooling loads increase.
1-WAY CEILING CASSETTE
- Compact design, 178mm ultra low profile.
- Water overflow protection, anti-freezing protection, fan motor overload protection, temperature sensor malfunction protection.
2-WAY Ceiling Cassette
- Elegant and discreet front panel blends in well with interior decor.
- Two-way air outlet, ideally suited for long narrow rooms.
4-way ceiling cassette
- Strong and balanced airflow features include auto operation, 4-way airflow, 7 fan speeds and strong circulating airflow.
Air Handling Unit KIT
- AHU kits are ideal for updating an existing DX refrigeration coil.
- Available in five sizes, ranging from 2.8 kW to 56 kW.
Bulkhead Ducted Indoor Unit
- All bulkhead duct type indoor units are only 200mm high and 450mm deep, making them suitable for concealing above cupboards and small spaces where they can be hidden from view.
Compact 4-way Ceiling Cassette
- Compact design suits half T-bar grid. Units maintain the uniform length and width with consistent ceiling opening and panel dimension. Convenient for design and installation.
Floor to Ceiling Type
- Elegant and discreet front panel blends in well with interior decor.
- 3D airflow, vertical and horizontal motorised louvres for comfortably even temperature and air distribution.
High static pressure indoor
- High static pressure design which can be adjusted from 50Pa to a massive 200Pa by utilising a DC indoor fan motor.
- Convenient installation options
High Static low profile
- Designed to suit installations where space is at a premium.
- High static pressure design which can be adjusted from 50Pa to a massive 200Pa by utilising a DC indoor fan motor.
Low Static pressure duct
- Suitable for rooms where space prevents long duct runs and, where noise levels are required to be at a minimum.
- Water overflow protection, anti-freezing protection, fan motor overload protection

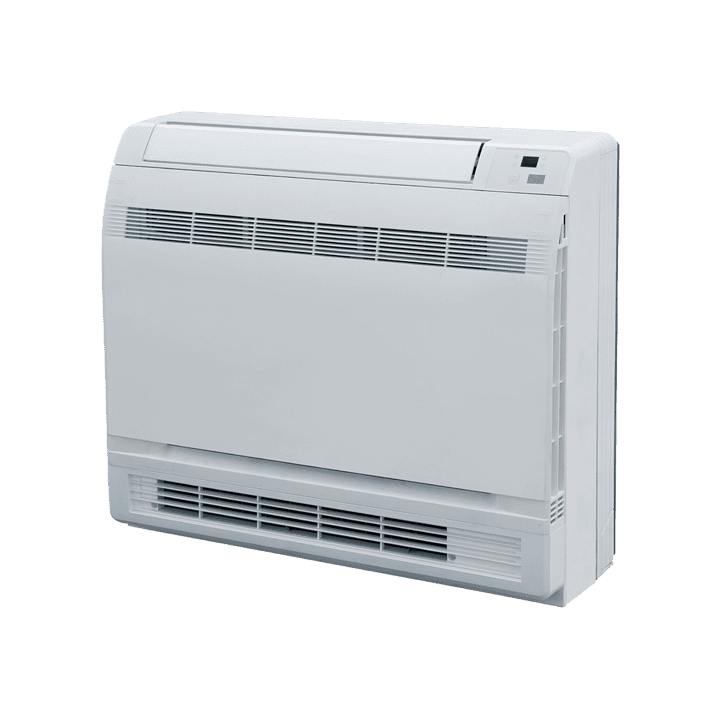

Low Wall Console Unit
- The fan can operate in multiple speeds and satisfy different air flow volume requirements.
- Grille is detachable for easy cleaning. With long life filter, cleaning cycle is 20 times longer.
Mini VRF MCMX Series 5th gen
- Mini VRF outdoor units are available in size ranging from 8 kW to 16 kW single phase.
- Step-less speed regulation – ranges from 5Hz to 65Hz providing more efficiency.
Outside Air Processing
- Applicable range: Residential houses, villas, business buildings, hotels, apartments, etc.
- A range of three single-phase and four three-phase models is available.
VRF heat Pump MCHX Series
- With VRF heat pump system, the indoor units are either all in cooling or all in heating mode. The maximum capacity of a single outdoor unit can reach 45 kW. Groups of individual units can also be combined reaching 180 kW capacity.
VRF Heat Recovery 5th Gen
- With VRF heat recovery system, the indoor units can be in cooling and heating mode simultaneously.
- The maximum capacity of a single outdoor unit can reach 45 kW.
- Groups of individual units can also be combined reaching 180 kW capacity.

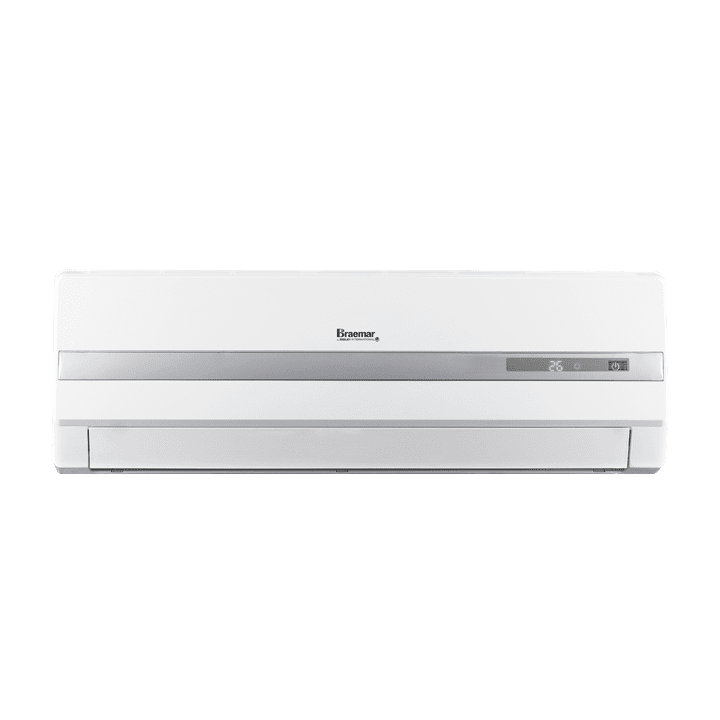

Wall mounted split system
- Motorised vertical louvres, up-down airflow for comfortably even temperature and air distribution.
- Mildew-proof filter, electrostatic fibre and anti-biotic fibre adopted to remove dust, smell, bacteria and mildew.
Contact an HVAC Sales Engineer
Speak to one of our HVAC experts about your requirements...
VRF Frequently Asked Questions
Seeley International has technical sales support to advise you on our Commercial products and their applications in projects. You can contact one of our Commercial sales engineers by clicking here.
Braemar reverse cycle air conditioner prices vary depending on the size of building, location and requirements. You need to speak with one of our sales engineers or an authorised Commercial contractor to get an accurate price for Commercial reverse cycle air conditioning. You can contact one of our Commercial sales engineers by clicking here.
Yes. As Climate Wizard products don’t add moisture to the supply air, they can be installed in various applications to deliver energy savings, such as pre-cooling and supplementary cooling with refrigerated air conditioning systems. More information can be found under Combined Solutions on the Commercial navigation menu. Click here.
