Single Phase Ducted Reverse Cycle Air Conditioner
The ideal solution for the whole of home or office heating and cooling
Braemar Single Phase Ducted Series
Single phase ducted reverse cycle provides high energy efficiency results and significant savings in running costs. Using inverter technology, optional motion sensor and installer settings tailoring airflow all make for best efficiency and the quietest operation. The system is visually appealing, discrete and a low profile unit delivering conditioned air via ducting and suitable ceiling or wall grilles.
Enjoy the perfect temperate in every room of your home with a fully ducted reverse cycle system.
The Braemar zone controller allows you to set individual temperatures for each zone with the added flexibility to turn off zones when not in use.
With single and three phase options available, Braemar has the solution for year round comfort.

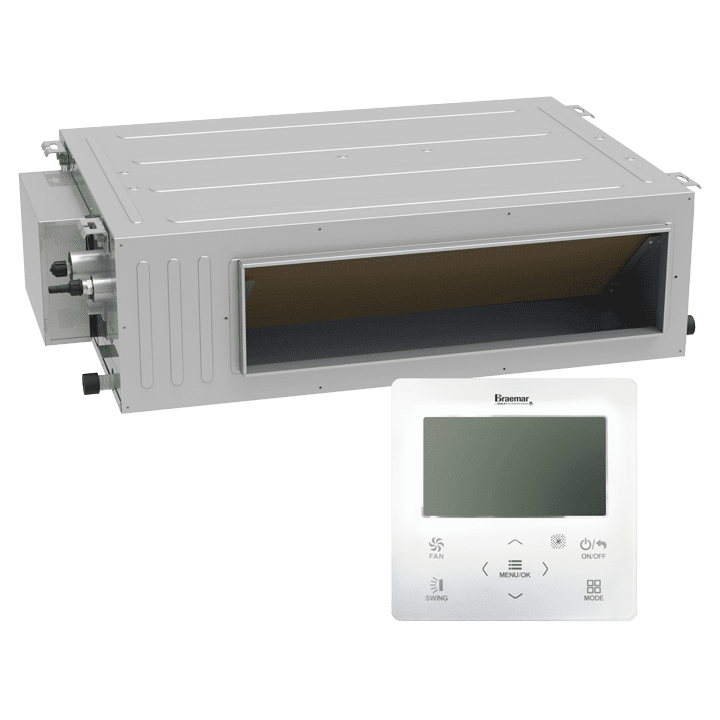

Indoor Units
- R32 refrigerant
More environmentally friendly, R32 refrigerant global warming potential is 68% lower than R410A, with up to 30% reduction in charging quantity needed. - Gold Fin
Protective coating on the indoor heat exchanger coil for greater durability. - ZERL
Rated to the latest zoned energy rating label standard. - Efficient and quiet
Inverter technology, optional motion sensor and installer settings tailoring airflow, all ensuring maximum efficiency and the quietest operation. - Low profile design
Visually appealing, discreet and low profile unit to deliver conditioned air via ducting and suitable ceiling or wall grilles. - Condensate pump as standard
All single phase ducted inverters have the option of utilising the built in drain pump or the gravity drain. The condensate pump has a 1m lift, making it easier to get the condensate away from the indoor unit and to the nearest drain point. This provides flexible installation options. - Home automation system adaptable
Modbus compatibility allows operation with a wide range of home automation systems. Remote on/off control available for applications that require connection to a Building Management System (BMS), or require a room card.

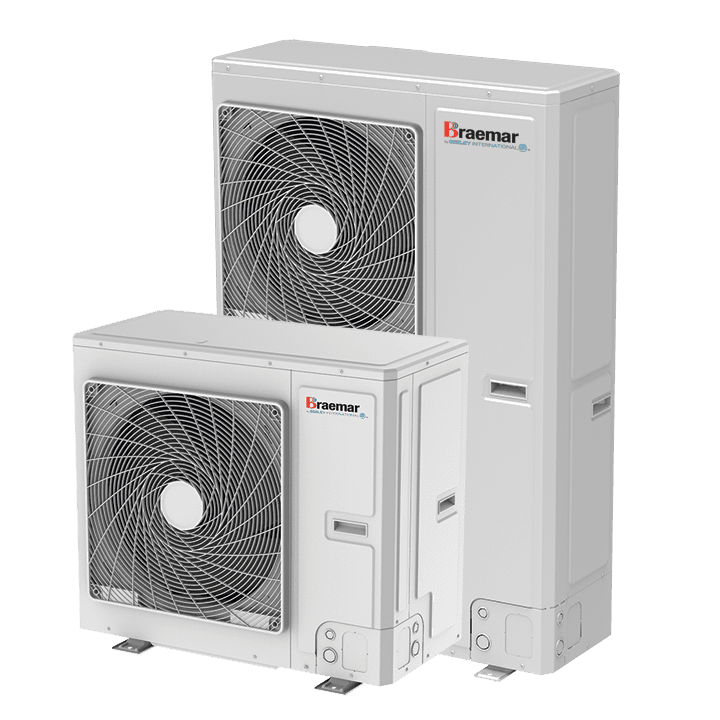

Outdoor Units
- Black Fin
Advanced protective coating on the outdoor coil to reduce corrosion and protect from the harsh Australian elements. - Flexible outdoor placement
Long pipe runs of up to 75m allows flexibility in placing an outdoor unit. - Slim design
Allows more flexibility in placing an outdoor unit. Easily fits into tighter spaces. - Quick and easy installation
Single drain connection point allows for quick and easy installation. - DRED as standard
Demand response enabled device capability is standard.
Zone Controller
- Control 4 to 81 zones with individual temperature control.
- Set different temperatures for each zone.
- Ability to turn zones on and off, at the RF remote sensor, or, at the wired wall control.
- Each zone can be both temperature and time schedule controlled.
- Prevent excessive power bills by setting “SAVE” function. This function limits the upper and lower temperature settings.
- Optional additional subsidiary wired wall control can be purchased to allow two access points to your zone system.
- “X-Fan” function allows the indoor fan to continue after the system has been switched off in cooling mode, this helps dry the indoor heat exchanger
- Optional Wi-Fi control module
Disclaimer:
1. Zoning is an optional extra. Braemar zone control kit comes standard for a 4 zone system. For systems with more than 4 zones, additional optional extra RF remote sensors are required.

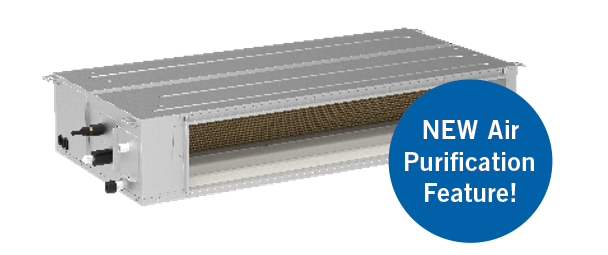

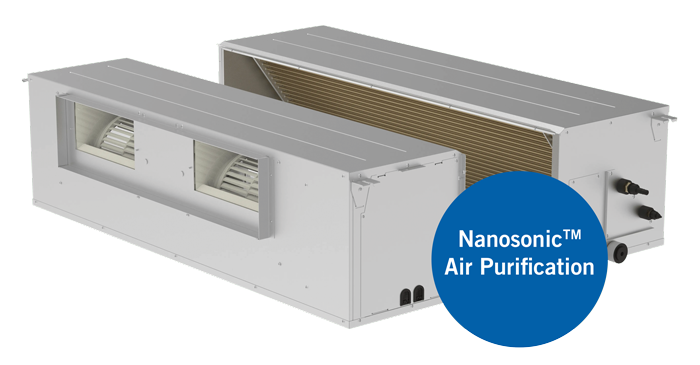

Ducted Indoor Units
| Model | Cooling Capacity (kW) | Cooling Capacity Range (kW) | Heating Capacity (kW) | Heating Capacity Range (kW) | Airflow (max) l/s (m3/hr) | Width (mm) | Depth (mm) | Height (mm) | Unit |
|---|---|---|---|---|---|---|---|---|---|
| KDHV070D1S | 7.10 | 2.40 ~ 7.80 | 8.00 | 2.20 ~ 8.80 | 417 (1500) | 900 | 655 | 260 | Ceiling |
| KDHV100D1S | 10.00 | 3.00 ~ 11.70 | 12.00 | 3.60 ~ 13.50 | 583 (2100) | 1340 | 655 | 260 | Ceiling |
| KDHA125D1S | 12.50 | 3.60 ~ 14.00 | 14.00 | 4.20 ~ 15.00 | 778 (2800) | 1350 | 720 | 360 | Ceiling |
| KDHA140D1S | 14.00 | 4.20 ~ 16.00 | 16.00 | 4.80 ~ 17.00 | 889 (3200) | 1350 | 720 | 360 | Ceiling |
| KDHA160D1S | 16.00 | 4.80 ~ 18.00 | 18.00 | 5.40 ~ 20.00 | 972 (3500) | 1350 | 720 | 360 | Ceiling |
Ducted Outdoor Units
| Model | Cooling Capacity (kW) | Cooling Capacity Range (kW) | Heating Capacity (kW) | Heating Capacity Range (kW) | Sound Pressure Level dB(A) | Width (mm) | Depth (mm) | Height (mm) | Unit |
|---|---|---|---|---|---|---|---|---|---|
| KCHA070D1B | 7.10 | 2.40 ~ 7.80 | 8.00 | 2.20 ~ 8.80 | 57 | 900 | 655 | 260 | Ceiling |
| KCHA100D1B | 10.00 | 3.00 ~ 11.70 | 12.00 | 3.60 ~ 13.50 | 58 | 1340 | 655 | 260 | Ceiling |
| KCHA125D1B | 12.50 | 3.60 ~ 14.00 | 14.00 | 4.20 ~ 15.00 | 59 | 1350 | 720 | 360 | Ceiling |
| KCHA140D1B | 14.00 | 4.20 ~ 16.00 | 16.00 | 4.80 ~ 17.00 | 59 | 1350 | 720 | 360 | Ceiling |
| KCHA160D1B | 16.00 | 4.80 ~ 18.00 | 18.00 | 5.40 ~ 20.00 | 60 | 1350 | 720 | 360 | Ceiling |
- Download Product Brochure
- Braemar Reverse Cycle KDHV Owner Manual English
- Braemar Reverse Cycle NDHV Owner Manual English
- Braemar Reverse Cycle LE60 Zone Controller Owner Manual English
- Braemar Reverse Cycle XE70 Controller Owner Manual English
- Braemar Reverse Cycle XK75 Controller Owner Manual English
For complete peace of mind, Seeley International backs every one of its air conditioning systems with an industry leading comprehensive warranty program.
5 Year Comprehensive Warranty
Quality that lasts – 5 year comprehensive manufacturer’s warranty
Harness the power power of Braemar Reverse Cycle Air Conditioning
A reputation built on quality and endurance
Founded in 1938, Braemar remains one of Australia’s most recognised and trusted brand names today.
Braemar warms the hearts and homes of Australians, providing total climate control in every home.

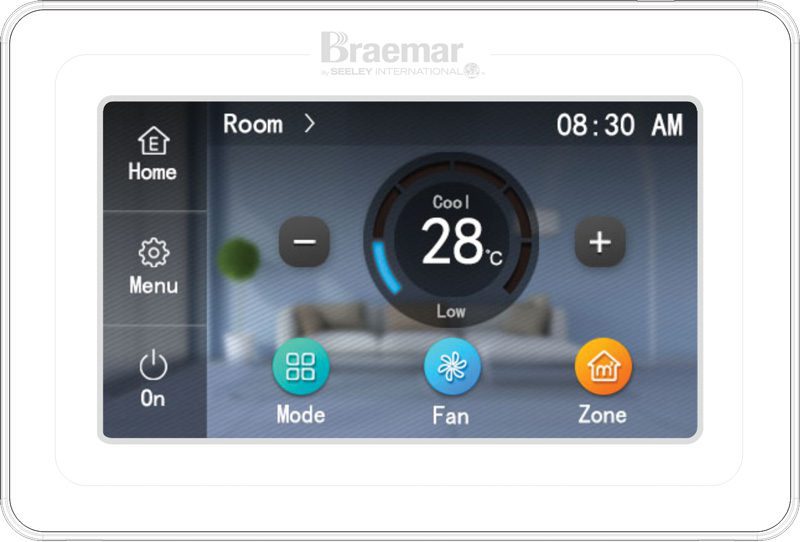

Zone Controller for Ducted Reverse Cycle Systems
Smart, sophisticated and incredibly intuitive, Braemar Zone Control makes operating your Braemar air conditioner so simple. The discreet and modern design will blend seamlessly into the decor of your home.
